Postby Proctor750 » Sun Aug 03, 2008 3:15 pm

Heres what's done so far:

Exhaust, heat shield and drive shaft are out,

Took the head off:
vanos etc.
Tranny & Clutch:
I'm going to try and use an E28 clutch and flywheel assembly and beef it up since it's single mass.

Put the stewart waterpump in:

Getting ready to put in the walbro:

may use this to clean up the deck:

Heres what my Cframe looked like thanks to scraping:
heres what I used and what it looks like now:

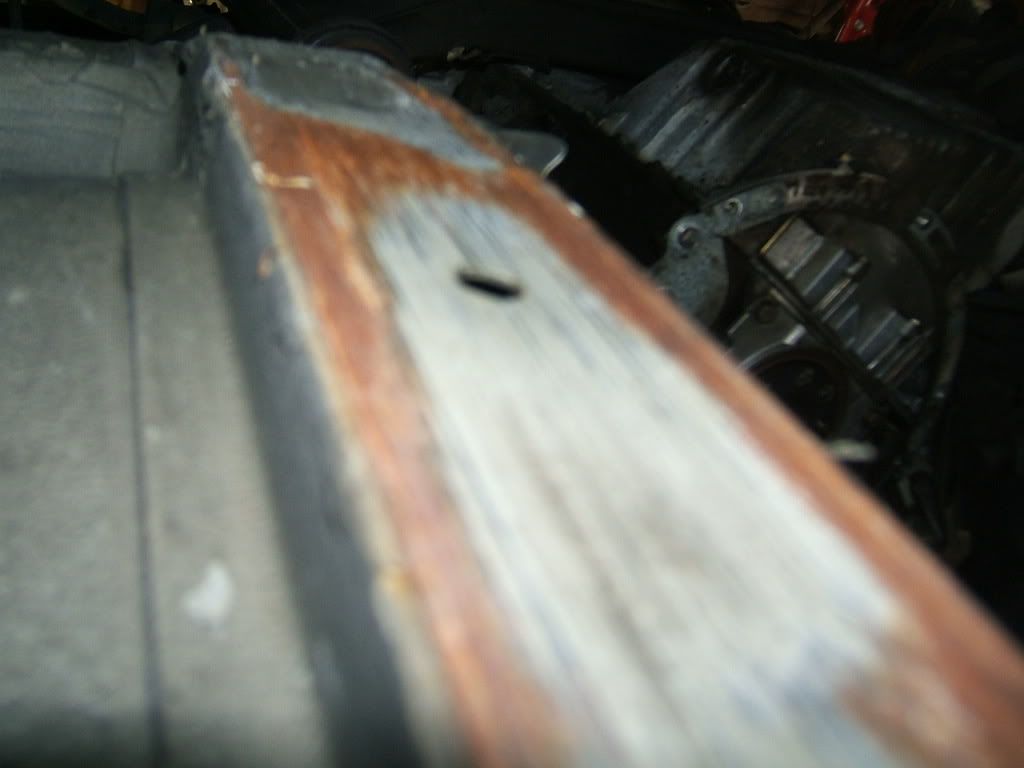

I found that the seals under the car including the body drain plug have cracks and aren't sealed properly anymore:
So I'm going to use this to seal it back up:

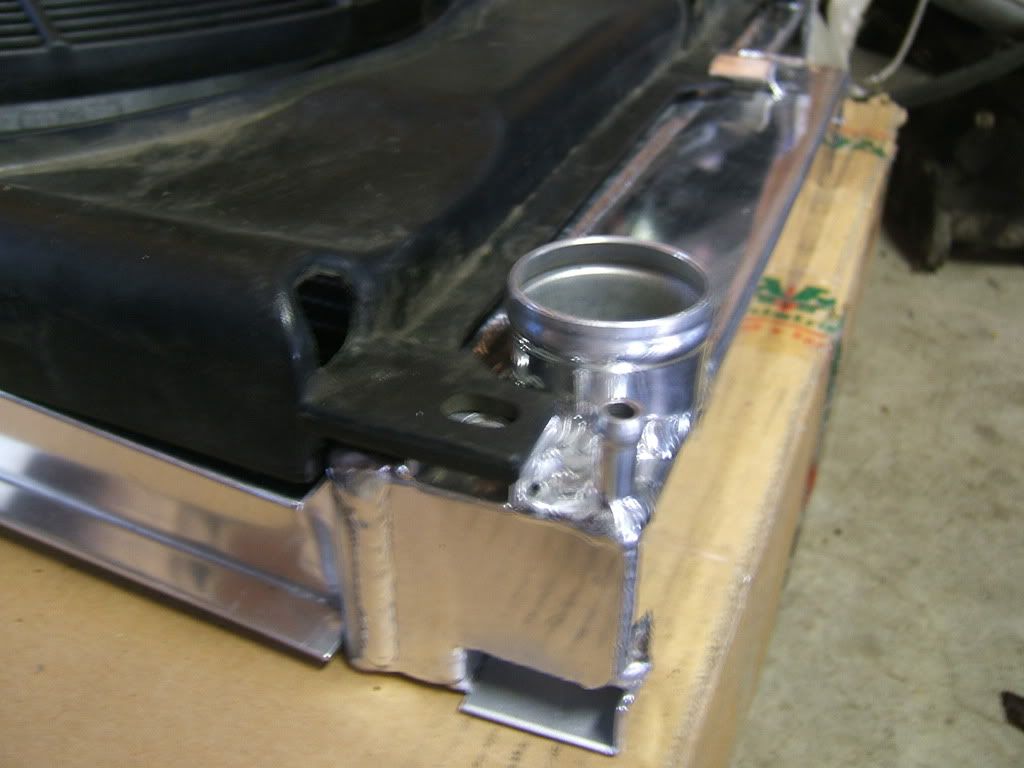

Heres the radiator mock up, still need the straps :roll:

Trying to keep things organized:
87' 528E 89' 750il
89' 750il 93' 318is
92 535i E34 M5 (Sold :( )
User avatar
Proctor750

Posts: 624
Joined: Fri Aug 24, 2007 3:42 pm
Location: Louisville, KY

Re: Turbo Build Begins

Postby DEFKON99 » Sun Aug 03, 2008 5:40 pm

Holy crap subscribed!!!!

:eatpop
Edge one looks like that stupid cube you buy to reset the brake pistons on doo doo cars -Proctor750

User avatar
DEFKON99
Site Admin

Posts: 4209
Joined: Sat Aug 18, 2007 1:59 pm
Location: San Antonio

1993 BMW 3 Series

Turbo Build Begins

Postby Caligula » Sun Aug 03, 2008 6:45 pm

You baggied and labeled everything? This looks much to clean to be an E36-Tech build. :shifty
User avatar
Caligula
Site Admin

Posts: 6782
Joined: Mon Sep 10, 2007 1:06 pm
Location: Ventura, CA

1995 Almera

Re: Turbo Build Begins

Postby Hodge » Sun Aug 03, 2008 7:59 pm

Dang dude...You don't know how badly I want to be starting on my E36 M42 Turbo build right now....

Thanks for the organization ideas! :mrgreen:
User avatar
Hodge
Moderator

Posts: 1008
Joined: Fri Aug 10, 2007 8:16 pm
Location: Florida

1989 350Z

Turbo Build Begins

Postby inthecrosshairs » Mon Aug 04, 2008 8:33 am

hopefully you don't move along at a bf.c fi pace and get this done before 2010 :shock:

Looks good and clean, good luck
inthecrosshairs

Posts: 103
Joined: Sun May 18, 2008 8:43 am

Re: Turbo Build Begins

Postby Volfinator » Mon Aug 04, 2008 8:41 am

Good grief. Looks like that's gonna be fun
User avatar
Volfinator

Posts: 5455
Joined: Mon Aug 20, 2007 7:01 pm
Location: Omaha, NE

1995 Leopard

Re: Turbo Build Begins

Postby fcvapor05 » Mon Aug 04, 2008 4:52 pm

Nice. Keep us updated.
There are only 3 real sports in this world: bull fighting, mountain climbing, and motor racing. The rest are just games. -Ernest Hemingway
User avatar
fcvapor05

Posts: 3473
Joined: Tue Aug 14, 2007 9:37 pm
Location: San Antonio, TX/Flint, MI

Re: Turbo Build Begins

Postby ///Mthrillah » Mon Aug 04, 2008 7:43 pm

Do work son

Keelers evo still down from the mad tyte jdm launches ?
///Mthrillah

Posts: 435
Joined: Thu Aug 23, 2007 3:33 am
Location: Louisville, KY

1996 Almera

Re: Turbo Build Begins

Postby Proctor750 » Mon Aug 04, 2008 9:55 pm

haha yea but hes sending the transfer case to John Shepherd so it should be nice.
I ran into a huge problem with the manifold and turbo as far as fitment, I will post up pictures a little later. Time to get some foods.
87' 528E 89' 750il
89' 750il 93' 318is
92 535i E34 M5 (Sold :( )
User avatar
Proctor750

Posts: 624
Joined: Fri Aug 24, 2007 3:42 pm
Location: Louisville, KY

Re: Turbo Build Begins

Postby BMWM1 » Mon Aug 04, 2008 10:42 pm

Cool I like this idea.Any idea of cost start to finish?
User avatar
BMWM1

Posts: 131
Joined: Tue Jul 29, 2008 6:51 pm

1995 BMW

Re: Turbo Build Begins

Postby BMWManiac » Tue Aug 05, 2008 12:07 am

Wish I could have been there for removing the head....when are you replacing it? I'll be home until Sunday
1997 Arctic Silver M3
OBD I/TRM setup (*545rwhp/520rwtq @ 23 psi*)

2006 Interlagos Blue Z4M Coupe
Carbon Fiber int, heated seats, NAV

1991 Alpine White 325i
Daily Driver
BMWManiac

Posts: 99
Joined: Sun Oct 14, 2007 2:09 pm
Location: Louisville, KY

1997 Almera

Re: Turbo Build Begins

Postby Proctor750 » Wed Aug 06, 2008 5:01 pm

I bet I will have spent 4,500 when everything is said and done. It's cheap, but you eat the labor.
87' 528E 89' 750il
89' 750il 93' 318is
92 535i E34 M5 (Sold :( )
User avatar
Proctor750

Posts: 624
Joined: Fri Aug 24, 2007 3:42 pm
Location: Louisville, KY

Re: Turbo Build Begins

Postby Proctor750 » Wed Aug 06, 2008 5:28 pm

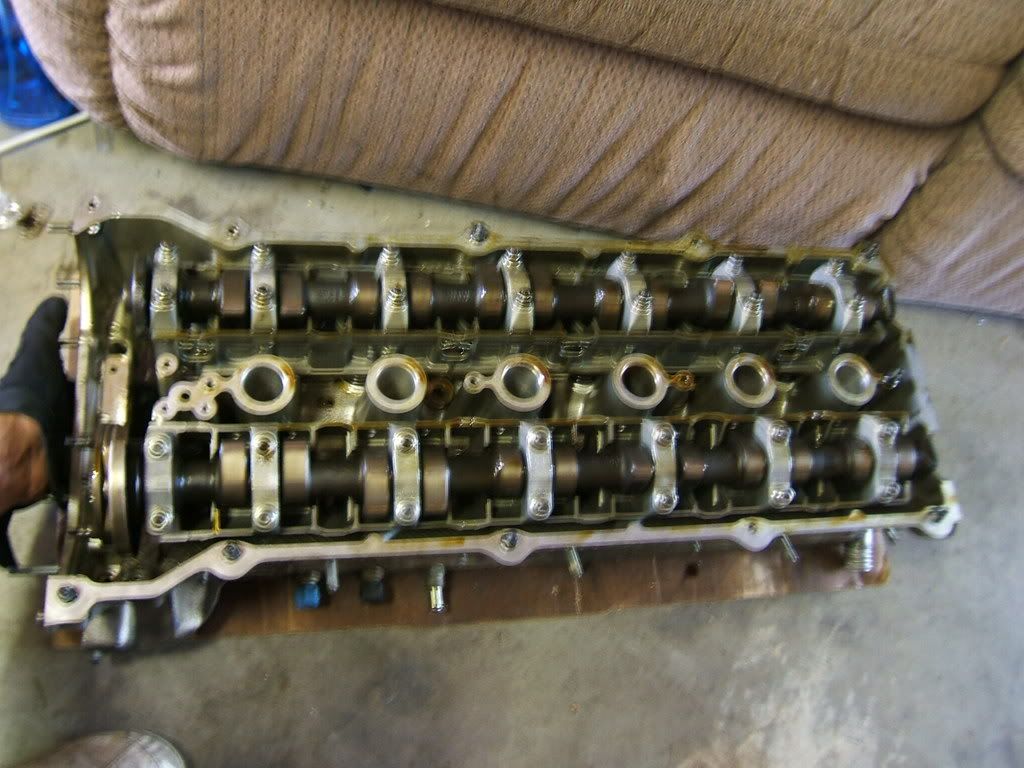

Heres the head after I cleaned it:
